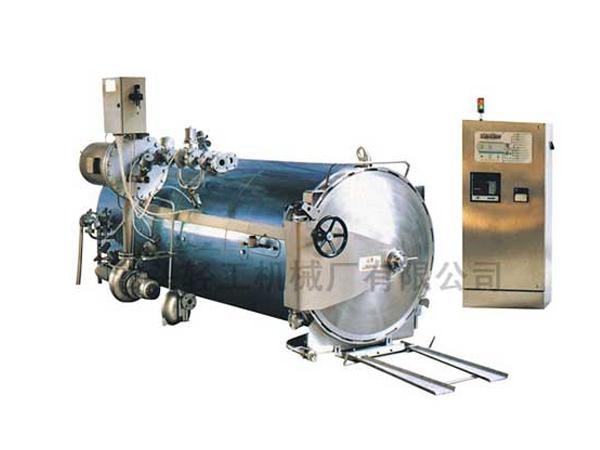

Water Spray Retort

Water Spray Retort

STWMF water spray retorts are made of stainless steel and are equipped with an imported specialized computer and automatic recorder. This allows the water spray retorts to precisely control and record the full sterilization process, and a horizontal design is utilized to increase the water spray area and improve the working efficiency.

Principle

The water spray retort is equipped with a heat exchanger. Stream from the factory’s boiler enters the heat exchanger, thus heating water inside the retort. Water is then sprayed onto the empty cans for a sterilization through inner pipes. Compared to water immersion, this method saves both water and energy.

Features
  • Excellent sterilization effect
  • Automatic operation
  • Horizontal design, improves working efficiency
  • Stainless steel material, corrosion-free
  • Water spray instead of water immersion, saving water and energy
Parameters
Machine type STERIF0W-1341 STERIF0W-1362
Designed temperature 145℃ 145℃
Designed pressure 0.5MPa 0.5MPa
Retort dia. 1300 mm 1300 mm
Volume 5.2 m3 7.2m3
Dimension 5020×2006×2230 mm 6980×2060×2230 mm
Net weight 2400 kg 2950 kg
