Horizontal Sterilizer,Double Layer Series

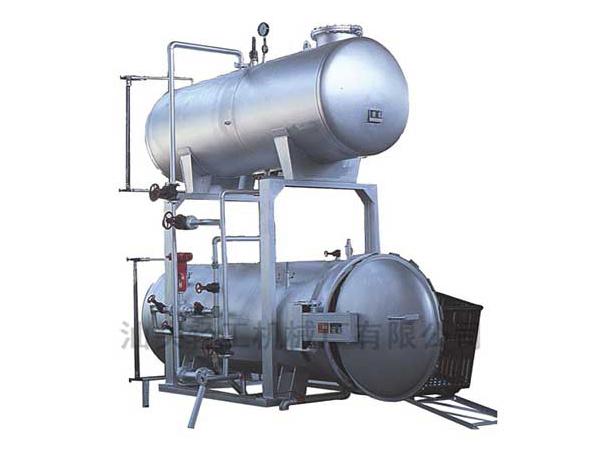

Double Layer The Series Horizontal Sterilizer

GT7C5 series double layer horizontal sterilizers are a combination of the lower GT7C5 horizontal sterilizer and an upper water storage tank. They are widely used for can sterilization in food, pharmaceutical, textile, bamboo, and wood industries.

The double layer design saves water. In a single layer sterilizer, the used water is discharged after a single sterilization process. In double layer sterilizers, the used water is pumped back to the water storage tank and is recycled for use in sterilizing the next round of products.

Features
  • Double layer design saves water consumption.
  • Excellent sterilization effect meets FDA standards.
  • Uniform temperature inside sterilizer.
  • Automatic control or manual control can be chosen according to customer requirements.
Parameters
Machine Type GT7C5 double layer horizontal sterilizer
Designed Temperature 147°C
Designed Pressure 0.35MPa
Main material Carbon steel
Retort dia. 1.2 m
Net weight About 3900kg About 3200kg About 2500kg
Capacity 4.1 m3 3.2 m3 2.08 m3
Working medium Steam, water, air
Orientation material Food cans/bottles/soft packages
Dimensions 3940×2300×3450 mm 3140×2300×3450 mm 2340×2300×3450 mm
