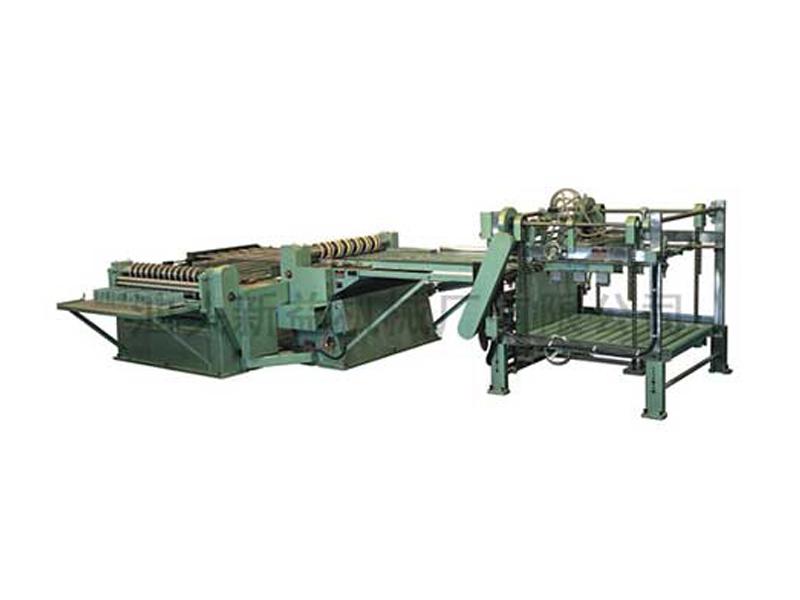

Gang Slitter

Gang Slitter

STWMF offers gang slitters for cutting tin plates or aluminum sheets.

The ST-B2B gang slitter features a duplex slitting function, making it an important device for early stage production. The tin plate is first cut into a strip using the round cutter according to the desired size, then the strips are cut using a longitudinal knife into the same size and are then stacked neatly for later welding applications.

The gang slitter quality will directly affect final can product quality, which is why our gang slitters are known for their high quality and high production efficiency. Different gang slitter models feature the same basic principles, allowing us to design gang slitters according to specific customer requirements for different material slitting requirements.

Features of the ST-B2B gang slitter
  • Tinplate sucking via a vacuum with a strong sucking strength.
  • Stable knife rotation, ensuring the same size in every tin plate sheet
  • Equipped with an angle adjuster to ensure a 90-degree angle between vertical and horizontal sides.
  • Simple design, making maintenance and subsequent replacement easy
  • A hydraulic knife base and tungsten steel knife can be installed according to your needs.
Parameters
Machine Type ST-B2B
Cutting Speed 600 mm/sec
Recommended Tinplate Size 500×700-1140×1140 mm
Max. Tinplate Thickness 0.4 mm
Main Horse Power Required 3HP
Floor Space & Overall Height 4380×3380×1130 mm
Net Weight 2500 kgs
