Automatic Can body Welder

The can body welder, also called a tinplate welding machine or can bodies welder, is the heart of any 3 piece can production line as it forms the body blanks into their basic shape, then welds the seam overlap. Our welding process requires only a minimal overlap of only a few tenths of a millimeter, and optimal control of the welding current, combined with a precision matched pressure on the overlap guarantees a matched seam that is only 1.4 times thicker than the sheet metal.

    1. Automatic Canbody Welder QH-350/280
    2. Automatic Canbody Welder QH-350/280 QH-350/280 automatic canbody welder is a newly developed welding machine, which is ideal for the production of various types of can bodies with a diameter of Φ52-Φ70 and height of 100-320mm...

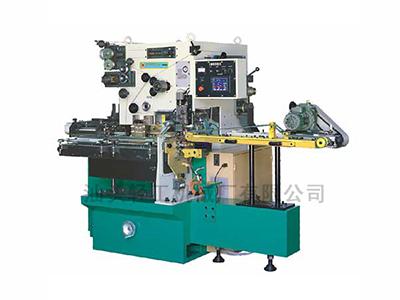

    1. Automatic Canbody Welder QM-150
    2. Automatic Canbody Welder QM-150 STWMF’s QM-150 automatic can body welder is used for medium speed welding of food and chemical cans, with a maximum welding speed of 80-150 cans/min and can diameter of Φ52-Φ155mm.

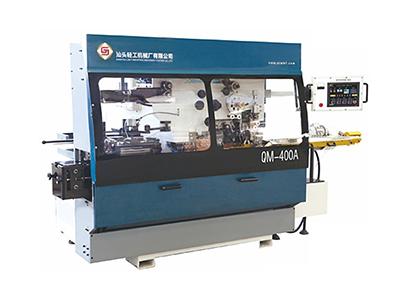

    1. Automatic Can Welder QM-400A/B
    2. Automatic Can Welder QM-400A/B STWMF’s QM-400A/B fully automatic can welder is our independently developed economical machine. Featuring digital control, it’s simple to operate with a maximum production capacity of 400 cans/minute.

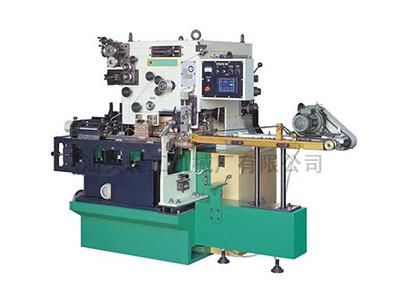

    1. Automatic Tinplate Can body Welder QL-80
    2. Automatic Tinplate Can body Welder QL-80 The QL-80 fully automatic can body welder is our independently developed, low-speed welding machine. It features a digital control and is easy to operate. It is suitable for welding a variety of large cans, with sizes capable of a flexible adjustment.

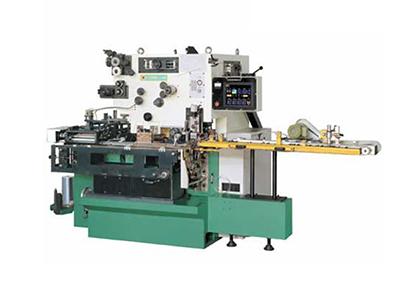

    1. Automatic Can Body Welder QL-150
    2. Automatic Can Body Welder QL-150 The QL-150 and QL-180-G automatic can body welders are our independently developed medium low speed welding machines, and are widely used for the production of milk powder cans, food cans, and chemical cans.

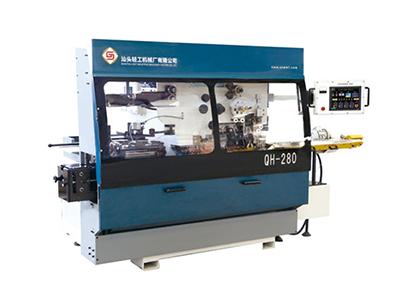

    1. Automatic Tinplate Can Welder QL-280
    2. Automatic Tinplate Can Welder QL-280 STWMF independently developed the QM-280 automatic tinplate can welder, which is a medium speed welding machine primarily used for the production of small cans, including beverage cans, aerosol spray cans and milk powder cans.

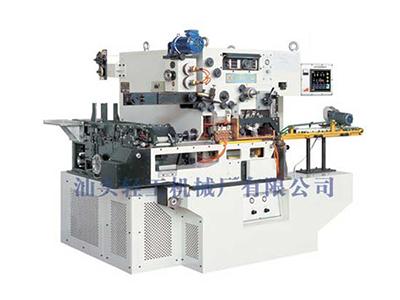

    1. Automatic Can Body Welding Machine QM-500
    2. Automatic Can Body Welding Machine QM-500 Our independently developed QM-500 automatic can body welding machine is primarily used for the production of small cans, including beverage and food cans. With a medium to high production capacity at a maximum of 500 cans/minute...

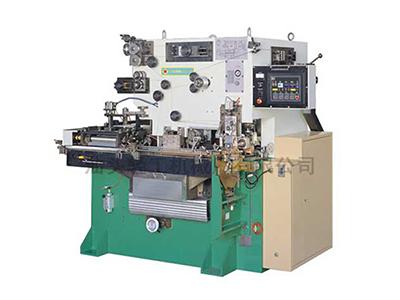

    1. Automatic Can welder QM-180
    2. Automatic Can welder QM-180 STWMF’s independently developed, medium speed QM-180 automatic can welder is mainly used for the production of can bodies with a small diameter, such as beverage cans and aerosol spray tin cans.

STWMF produces automatic can body welders in a variety of models and sizes, including low-speed, medium-speed and high-speed products, which can reach a maximum production capacity of 500 cans/min.

Features
  • Independently developed and uses a digital control system to precisely control the copper wire speed during welding.
  • Analogue compensation control. Weld trailing of the start and final welding points is largely decreased and overlaps are kept to about 0.5 mm. A uniform current and the same overlap ensure high quality can body welding.
  • Welding roller driving methods: direct connection servo motor driving or gear and chain driving. The first reduces driving speed errors, and the latter is utilized according to customer requirements for the final product effect.
  • Independently developed sinusoidal welding current system. Compared with a square wave welding current system, it produces a stronger welding seam.
Several popular automatic can body welders of STWMF
Can body welder type Suitable cans Max. production capacity Can diameter Welding speed
QM-500 Food cans 500 cans/min Small High
QM-400A/B Food cans, milk powder cans 400 cans/min Small Medium high
QM-280 Food cans, chemical cans 280 cans/min Medium small Medium
QM-180 Food cans, chemical cans 180 cans/min Medium small Medium low
QM-150 Food cans, chemical cans 150 cans/min Medium Medium low
QL-150, QL-180-G Food cans, chemical cans 180 cans/min Large Medium low
QL-80, QL-120-G Food cans, milk powder can 150 cans/min Large Low
