Automatic Vertical Seamer with Flanger

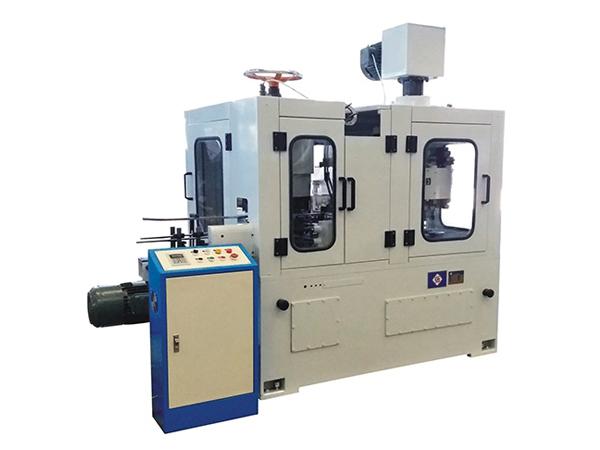

ST-B82FS automatic vertical seamer with flanger

STWMF provides high-quality automatic vertical seamers with flangers that are suitable for the flanging and seaming of large, round 3-piece cans.

Features

Vertical design for can input and output seamlessly connects to the next process.
Equipped with simultaneous flanging and seaming functions to better meet quality and shape needs.
Equipped with a protective shield to ensure both machine and operator safety.

We provide 2 primary automatic vertical seamer with flanger models.

Parameters

Machine type	ST-B82FS		ST-B82NFS
Working Head	Flanging 6H/Seaming 6H	Flanging 3H/Seaming 3H	Necking 8H/Flanging 8H/Seaming 8H
Range of can dia	202D-401D		202D-401D
Range of can height	46-160 mm (special 110-240mm)		70-180 mm
Capacity per minute	Up to 372 cans/min (depend on can size)	Up to 186 cans/min (depend on can size)	Up to 500 cans/min (depend on can size)
Horse power required	5.5+3.7+0.18KW		7.5+3.7+0.18KW
Compress air Required	3kgf/cm² × 50 L/min		3kgf/cm² × 100 L/min
Floor space &overall height	2700×1800×2350 mm		2600×2000×2900 mm
Net weight	6000 kgs		8000 kgs
Height of input station	820 mm		820 mm
Lubricate	Central lubricating system(underside)&manual lubricate(upside)		Central lubricating system(underside)&manual lubricate(upside)
Speed control	Inverter		Inverter
