Automatic Can Seamer
Automatic can seamers are used for can sealers, and work in conjunction with can filling machines. STWMF’s can seamers are suitable for a variety of can types, just by changing the dies used.
STWMF provides different automatic can seamer types as shown here:
Machine type | Application | Speed level | Max. capacity |
ST-B15 | Food cans | Medium | 400CPM |
ST-B15APH | Aerosol spray cans | Medium | 180CPM |
ST-B6CL | Large cans | Medium | 220CPM |
ST-B15A | Food cans | Medium | 450CPM |
ST-B83A | Food cans | High | 500CPM |
ST-B83AS | Small food cans | High | 500CPM |
ST-C3AL | Food cans, chemical cans | Low | 65CPM |
Advantages
- Protection design for vacant can feeding. If there are no cans entering the seaming machine, the end feeding system will immediately stop, then resume when cans enter.
- Automatic oil lubricating system for driving parts, which reduces abrasion and improves the service life.
- Stepless variable-speed pulley (speed ratio of 1:3)
- Steam deoxygenation equipment can be installed. Removing oxygen from cans via steam prevents food deterioration.
- Jet printers can be installed for packaging
- Matching with different can filling machine types can be carried out with an adjustment to the installation position and machine speed.
- Cans rotating for seaming with seamer head fixed. Simultaneous multiple can seaming improves efficiency and floor space utilization
- Timing screws are installed at can bases, which can reduce can shaking and avoid material leakage during the seaming process.
- Frequency inverters for convenient speed adjusting
- Non-contact, no can, no cap feeding device and automatic stopping device for insufficient caps.
- Hard chromium plating on the interfaces with cans, thus avoiding abrasion
- Stopping devices ensure machine and operator safety.
-
-
Automatic 4H Double Seamer ST-B15
With 6 working heads, the ST-15 automatic can seamer is also called a 6H automatic seamer. It carries out simultaneous sealing of 6 cans at a time. It is also able to work in conjunction with vacuum can filling machines or gravity filling machines, making it specially equipped with rotary filling machinery.
-
-

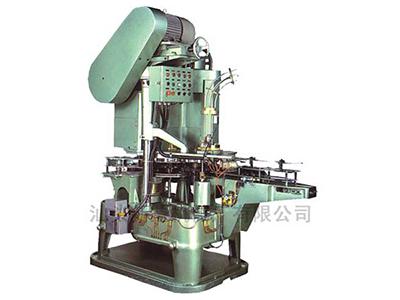

Automatic 6H Double Seamer ST-B15APH
The ST-B15APH fully automatic can seamer is suitable for the high-speed seaming of round, 3 piece aerosol spray tin cans. It’s equipped with 6 working heads with can types flexibly changed according to customer needs.
-
-

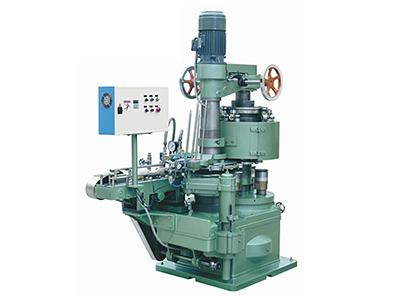

Automatic 4H Double Seamer ST-B6CL
The ST-B6CL seaming machine is a medium-speed automatic can seamer with 4 working heads, making it suitable for seaming of round cans at a maximum speed of 220 cans/minute.
-
-

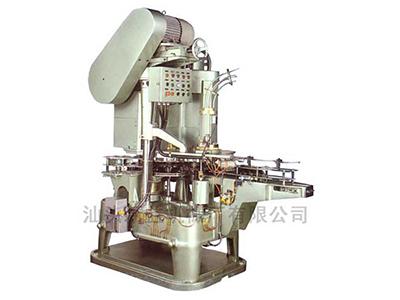

Automatic 6H Double Seamer ST-B15A
The ST-B15A automatic can seaming machine, with 6 working heads, is used for the production of vacant food cans at a maximum production capacity of 450 cpm.
-
-
Automatic 8H Double Seamer ST-B83A
The ST-B83A automatic can seamer is suitable for the high-speed production of vacant food cans with a maximum speed of 500 cpm.
-
-
Automatic 8H Double Seamer ST-B83AS
The ST-B83AS automatic can seamer is a high-speed seaming machine with highest capacity of 500 cans/min, making it suitable for the seaming of small round cans with a height of 48-180 mm. It’s equipped with 8 working heads.
-
-
Automatic Seaming Machine ST-C3AL
The ST-C3A(L) automatic seaming machine is suitable for the low-speed seaming of round 3-piece tinplate cans. It’s a very popular type, and is suitable for larger can types.
