Automatic Vertical Flanging Machine

Automatic Vertical Flanging Machine

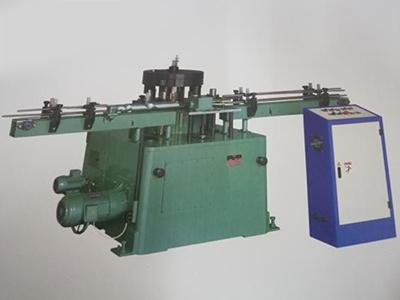

The ST-B14VY automatic vertical flanging machine is suitable for the flanging of round 3-piece cans with diameter of 202-401D. It is widely used in different scale can production factories.

Features
  • Vertical design. It only covers a small area and its products can be seamlessly and smoothly transported to the next process.
  • Weight of 2800 kg to ensure a smooth operation
  • Max. Capacity: 400 cpm
  • Central lubricating (underside)+manual lubricate(upside)
Parameters
Machine type ST-B14VY
Flanging head 4H 6H
Range of can dia. 202D-401D
Range of can height 50-160 mm
Capacity per minute Up to 300 cpm Up to 400 cpm
Horse power required 2.2 + 0.75 + 0.18 KW
Floor space &overall height 1700×1000×2465 mm
Net weight 2500 kgs 2800 kgs
Height of input station 850 mm
Lubricate Central lubricating system(underside)&manual lubricate(upside)
Speed control Inverter
