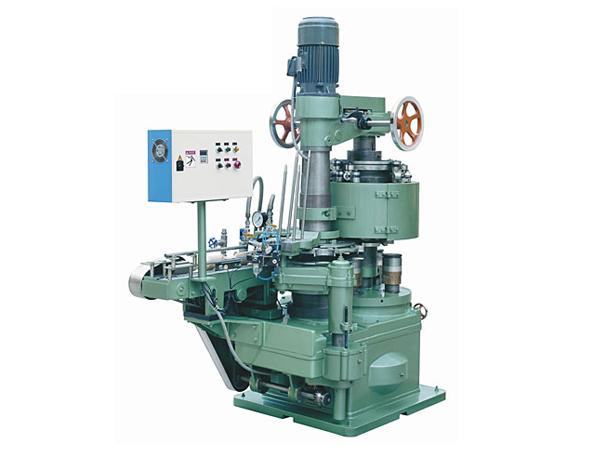

Automatic 4H Double Seamer ST-B6CL
The ST-B6CL seaming machine is a medium-speed automatic can seamer with 4 working heads, making it suitable for seaming of round cans at a maximum speed of 220 cans/minute.
Parameters| Machine type | ST-B6C | ST-B6CL |
| Range of can dia. | 202D-401D | 401D-603D |
| Range of can height | 90-210 mm(or 60-170mm) | 120-280 mm (or 100-260mm) |
| Capacity per minute | Up to 220 cans/min (Depend on can size) | Up to 120 cans/min (Depend on can size) |
| Horse power required | 3 HP | 5 HP |
| Floor space &overall height | 1700×1000×2200mm | 1850×11000×2360mm |
| Net weight | 2500 kgs | 2800 kgs |
| Height of input station | 775 mm(or 817 mm) | 805 mm(or 825 mm) |
| Compressed air required | 3kg/cm² x 20L/min | 3kg/cm² x 20L/min |
| Lubricate | Manual lubricate | Manual lubricate |
| Speed control | Inverter | Inverter |
