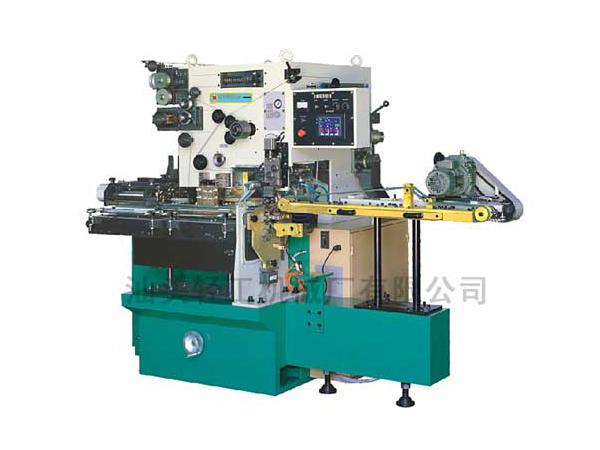

Automatic Canbody Welder QM-150

Automatic Canbody Welder QM-150

STWMF’s QM-150 automatic can body welder is used for medium speed welding of food and chemical cans, with a maximum welding speed of 80-150 cans/min and can diameter of Φ52-Φ155mm.

Main features
  • Advanced technology: human-computer interface control, PLC technology, frequency control system instead of traditional continuously variable transmission, Ethernet communication system to achieve continuous, uninterrupted remote online control.
  • Inverter welding power supply carries out current compensation control of any welding position.
  • AC servo system: copper wire distance between cans is shortened to 2mm. Continuous current welding is carried out and can making speed is improved to a medium-speed level.
  • Wide application range for cans, and suitable for DR tinplate welding.
  • Double side can body feeding, thus improving high speed can feeding stability
Parameters
Type QM-150 QH-150-G QH-120
Welding speed 7-26m/min
Production capacity 120-150 cans/min 80-150 cans/min
Welding points distance 0.5-0.9mm
Overlap 0.4mm
Sheet thickness 0.16-0.3mm
Can diameter Φ52-Φ155mm Φ65-Φ155mm Φ52-Φ99mm
Can height 60-250mm 60-320mm/60-250mm
Materials Tinplate, Ni plate
Tin coating Tin: #5-#100
Temper T2.5-DR8
Copper wire Φ1.38mm, Φ1.5mm
Power Three phase, Voltage: 380V, Frequency: 50Hz Electric consumption: 22 kVA
Welding frequency 120-260Hz
Cooling water 392-490kPa,12-18℃, 20 L/min
Compressed air 490kPa, 800L/min
Dimensions 2850×1860×1960 mm
