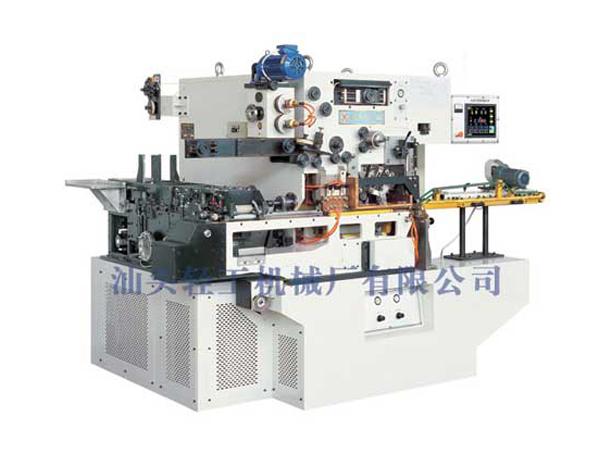

Automatic Can Body Welding Machine QM-500

Automatic Can Body Welding Machine QM-500

Our independently developed QM-500 automatic can body welding machine is primarily used for the production of small cans, including beverage and food cans. With a medium to high production capacity at a maximum of 500 cans/minute, it is an ideal machine for high speed can production.

Due to the high welding speed, it is equipped with an on-line vision system and on-line current detection system, which work to better ensure the final can quality. Any cans with quality problems will be automatically discharged.

Cans transporting system we use both side Dogs finger in order to let the cans being more stable towards to callebratiing crown.

Parameters
Type QM-500
Welding speed 27-65m/min
Production capacity 500 cans/min
Welding points distance 0.5-0.9mm
Overlap 0.4mm
Sheet thickness 0.14-0.3mm
Can diameter Φ52-Φ99mm
Can height 70-145mm
Materials Tinplate, Ni plate
Tin coating Tin:#5-#100
Temper T2.5-DR8
Copper wire Φ1.38mm, Φ1.5mm
Power Three phase, Voltage: 380V, Frequency: 50Hz, Electric consumption: 65kVA
Welding frequency 300-500Hz
Cooling water 784kPa,15℃, 32L/min
Compressed air 588kPa,1000L/min
Nitrogen air 245kPa, 2×(12-16)L/min
Dimensions 3555×2370×2100mm
