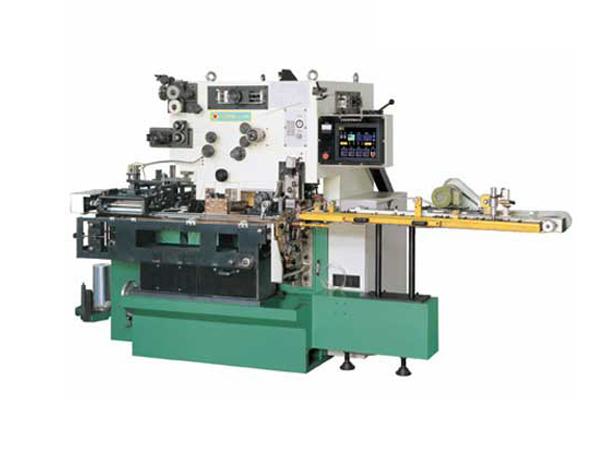

Automatic Can Body Welder QL-150
The QL-150 and QL-180-G automatic can body welders are our independently developed medium low speed welding machines, and are widely used for the production of milk powder cans, food cans, and chemical cans.
Parameters| Type | QL-150 | QL-180-G | |
| Welding speed | 7-26m/min | ||
| Production capacity | 120-150 cans/min | 150-180 cans/min | |
| Welding points distance | 0.5-0.9mm | ||
| Overlap | 0.4mm (0.6mm is optional) | 0.4mm | |
| Sheet thickness | 0.14-0.3mm | ||
| Can diameter | Φ99-Φ180mm | Φ65-Φ155mm | |
| Can height | 100-280mm | 60-265mm | |
| Materials | Tinplate, Ni plate | ||
| Tin coating | Tin: #5-#100 | ||
| Temper | T2.5-DR8 | ||
| Copper wire | Φ1.38mm, Φ1.5mm | ||
| Power | Three phase, Voltage: 380V, Frequency: 50Hz, Electric consumption: 30kVA | ||
| Welding frequency | 120-400Hz | ||
| Cooling water | 392-490kPa, 12-18℃, 20L/min | ||
| Compressed air | 490kPa, 800L/min | ||
| Dimensions | 2850×2030×2050mm | ||
