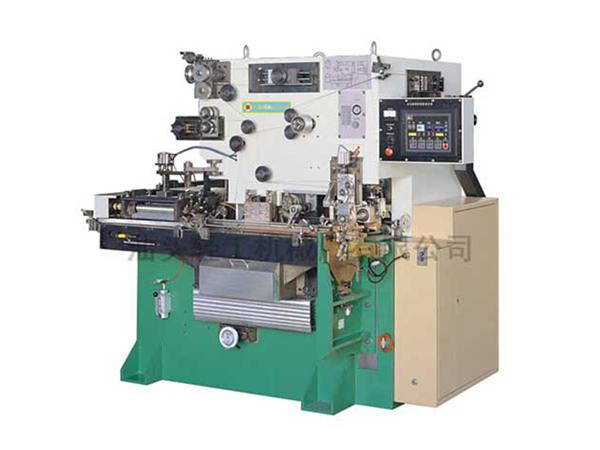

Automatic Can welder QM-180

Automatic Can welder QM-180

STWMF’s independently developed, medium speed QM-180 automatic can welder is mainly used for the production of can bodies with a small diameter, such as beverage cans and aerosol spray tin cans.

It uses our independently developed sinusoidal welding current system, which, compared to a square wave welding current system, produces a welding seam with a higher strength and better flexibility.

Parameters
Type QM-180 QM-180-G QH-150
Welding speed 7-26m/min 15-45m/min
Production capacity 150-180 cans/min 120-150 cans/min
Welding points distance 0.5-0.9mm
Overlap 0.4mm
Sheet thickness 0.16-0.3mm
Can diameter Φ52-Φ155mm Φ65-Φ155mm Φ52-Φ99mm
Can height 60-265mm 60-320mm
Materials Tinplate, Ni plate
Tin coating Tin:#5-#100
Temper T2.5-DR8
Copper wire Φ1.38mm, Φ1.5mm
Power Three phase, Voltage: 380V, Frequency: 50Hz, Electric consumption: 30kVA Electric consumption: 60kVA
Welding frequency 120-400Hz 200-500Hz
Cooling water 392-490kPa,12-18℃, 20L/min
Compressed air 490kPa, 800L/min
Dimensions 1980×2030×2050mm
