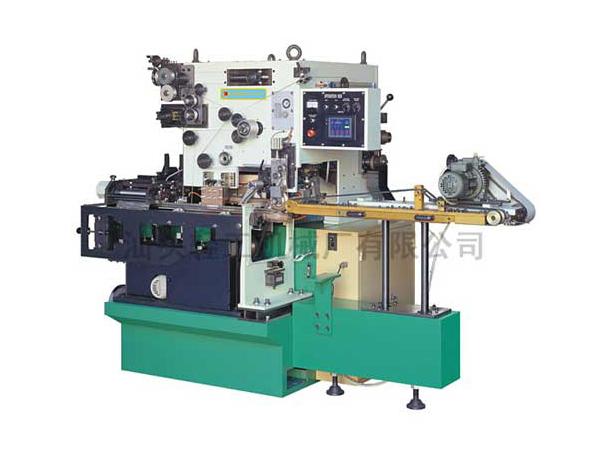

Automatic Tinplate Can body Welder QL-80

Automatic Tinplate Can body Welder QL-80

The QL-80 fully automatic can body welder is our independently developed, low-speed welding machine. It features a digital control and is easy to operate. It is suitable for welding a variety of large cans, with sizes capable of a flexible adjustment. We also offer customization services for special can body sizes.

Main features
  • Flexible welding power equipment: square wave power output or sinusoidal power output can be chosen according to customer requirements
  • Production capacity of 80 cans/min, tinplate thickness of 0.16-0.33mm, max. copper wire welding speed of 26 m/min.
Parameters
Type QL-80 QL-120-G
Welding speed 7-26m/min
Production capacity 80 cans/min 120-150 cans/min
Welding points distance 0.5-0.9mm
Overlap 0.4mm (0.6mm is optional) 0.4mm
Sheet thickness 0.16-0.3mm
Can diameter Φ99-Φ180mm Φ65-Φ155mm
Can height 100-280mm 60-250mm/60-200mm
Materials Tinplate, Ni plate
Tin coating Tin:#5-#100
Temper T2.5-DR8
Copper wire Φ1.38mm, Φ1.5mm
Power Three phase, Voltage :380V, Frequency: 50Hz, Electric consumption: 22kVA
Welding frequency 120-260Hz
Cooling water 392-490kPa,12-18℃, 20L/min
Compressed air 490kPa, 800L/min
Dimensions 2850×1860×1960mm
